Brake

LXB-SCM/LXB-SCF Brake features :
● Integration of serving, parking and emergency braking functions
● High heat dissipation and thermal capacity with relatively limited size
● Easy to install and disassemble
● Quick and accurate braking response
● OEM products, easy to maintain
● High-speed end mounting for greater braking capability with same size
● Can be customized according to customer needs

公轴制动器高366.png 母轴制动器高366.png

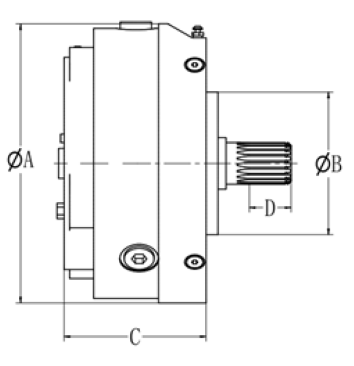

Male Shaft Brake Female Shaft Brake

LXB-SCM Brake LXB-SCF Brake

Male shaft brake product corresponding model selection (by braking torque)
	A	B	C	D	braking torque（N.m）
LXB-SCM-01	φ299	φ152.4	151.6	44.5	100-1900
LXB-SCM-XX	Customized design	Customized design	Customized design	Customized design	Customized design
Female shaft brake product corresponding model selection (by braking torque)
	A	B	C	D	braking torque（N.m）
LXB-SCF-01	φ299	φ152.4	151.9	61	100-1900
LXB-SCF-XX	Customized design	Customized design	Customized design	Customized design	Customized design
* The sample shows only the basic graphics, all dimensions are subject to change without notice. If you need to machine or modify the locking plate, please design according to the actual matching tolerance. * A special brake can be provided, and the specific dimensions can be customized according to the customer. **** If you require a larger aperture, please consult.
