Customized brake product corresponding model selection (by braking torque) | |||||

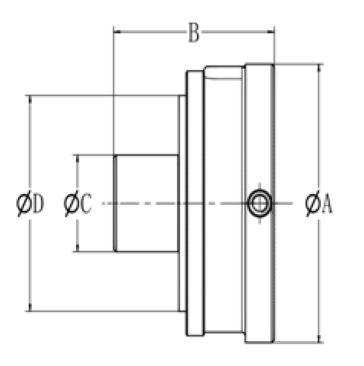

A | B | C | D | braking torque（N.m） | |
LXB-XXX-01 | φ230 | 180 | Customized design | Customized design | 100-5000 |
LXB-XXX-02 | φ460 | 200 | Customized design | Customized design | 5000-20000 |
LXB-XXX-03 | φ500 | 300 | Customized design | Customized design | 20000-100000 |
LXB-XXX-XX | Customized design | Customized design | Customized design | Customized design | Customized design |
* The sample shows only the basic graphics, all dimensions are subject to change without notice. ** If you need to modify the connection dimension, please design according to the actual matching tolerance. *** A special brake can be provided, and the specific dimensions can be customized according to the customer. **** If you require other dimension, please consult. | |||||
