Explosion-proof Torque Limiter    (ATEX)
Explosion-proof Torque Limiter (ATEX)
LXT-HD (Explosion proof type)Torque limiter features:
● Complies with EU standards with ATEX certificate issued by Sira. It can be used in potentially explosive environment
● Suitable for heavy load or large torque (3000kw and below is recommended)
● More reliable and efficient absorption of high energy shock loads
● Anti-mis-operation design, stable and reliable protection torque value
● No hydraulic system, lower maintenance cost
● Specicial friction material with high heat absorption, no sparkles creation and seal protection is not needed.
● Optimized structural design with minimal output inertia
● Compact structure saves installation space
● Can be customized according to customer needs
● Can be upgraded to “Smart torque limiter”


From LXT-HD-400 to LXT-HD-855,Power range of 855KW and below

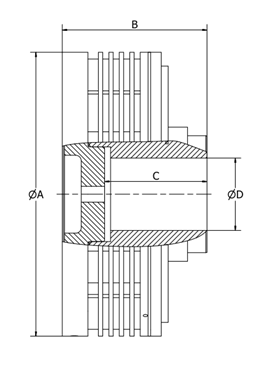

A

B

C

D

Max RPM

LXT-HD-400

φ510

200

230

φ100(φ120)

2000

LXT-HD-525

φ510

200

230

φ100(φ120)

2000

LXT-HD-700

φ510/φ602

290

245

φ100(φ120)

2000

LXT-HD-855

φ510/φ602

290

245

φ100(φ120)

2000

From LXT-HD-1000 to LXT-HD-3000Power range from 1000KW-3000KW


A

B

C

D

Max RPM

LXT-HD-1000

φ602

295

245

φ100(φ120)

2000

LXT-HD-1200

φ602

295

245

φ120(φ150)

2000

LXT-HD-1600

φ602

295

245

φ150(φ160)

2000

LXT-HD-2000

φ602

295

245

φ150(φ160)

2000

LXT-HD-2500

φ602

310

255

φ160(φ180)

2000

LXT-HD-3000

φ602

330

260

φ180(φ200)

2000

LXT-HD-XXX

Customized design

Customized design

Customized design

Customized design


* The sample shows only the basic graphics, all dimensions are subject to change without notice.

** If you need to machine or modify the locking plate, please design according to the actual matching tolerance.

*** A special limiter can be provided, and the specific dimensions can be customized according to the customer.

**** If you require a larger aperture, please contact us.
