Torque shaft torque limiter

LXT-TS Torque limiter features :

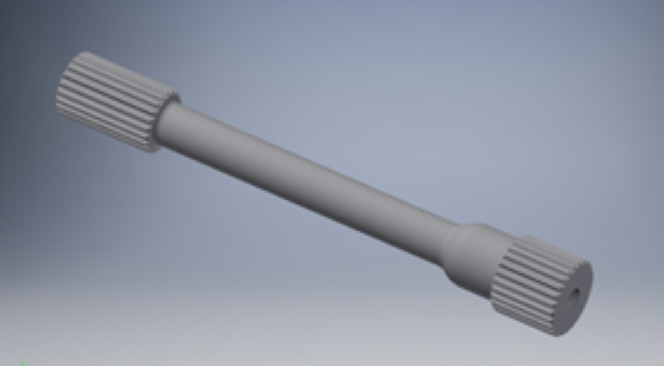

● Designed for hollow shaft motor application with torque shaft assemble
● Quick and accurate response to shock loads
● No hydraulic system, lower maintenance cost
● Compact structure, easy installation and maintenance
● Very low output inertia
● Can be customized according to customer needs
● Can be upgraded to “Smart torque limiter”


Torque shaft torque limiter product corresponding model selection (20KW-500KW by power)

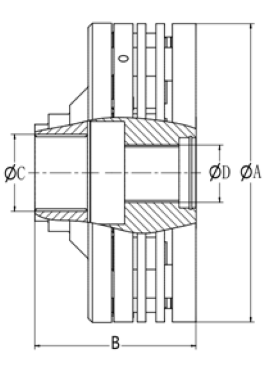

	A	B	C	D	Power（KW）
LXT-TS-100	φ254	171	φ67	φ43	20-100
LXT-TS-200	φ286/φ325	177/175	φ82/φ84	φ60/φ62	100-200
LXT-TS-300	φ286/φ325	177/175	φ82/φ84	φ60/φ62	200-300
LXT-TS-500	φ325	175	φ84	φ62	300-500
LXT-TS-XXX	Customized design	Customized design	Customized design	Customized design	Customized design
* The sample shows only the basic graphics, all dimensions are subject to change without notice. If you need to machine or modify the locking plate, please design according to the actual matching tolerance. * A special limiter can be provided, and the specific dimensions can be customized according to the customer. **** If you require a larger aperture, please contact us.
